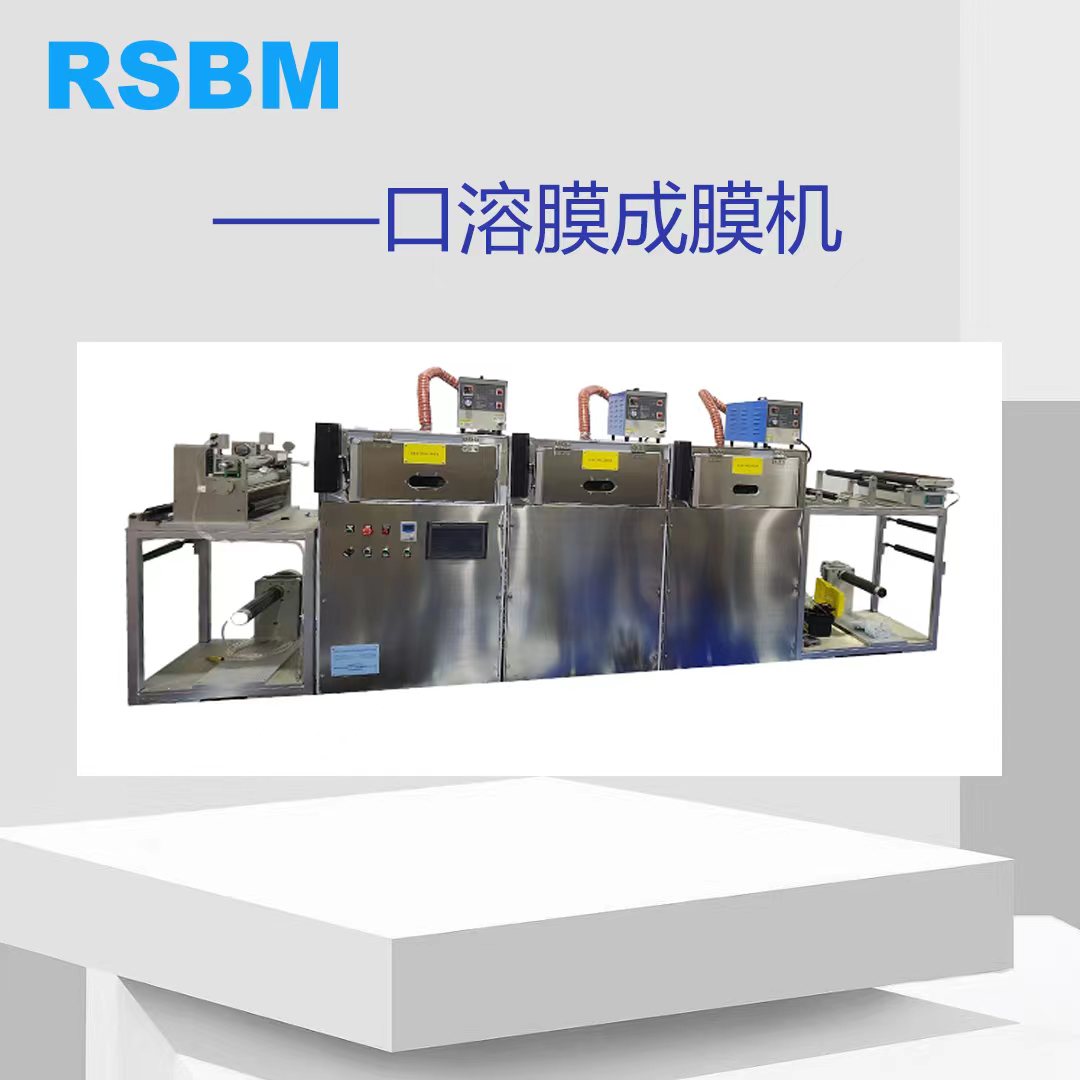

Oral Dissolving Film Making Machine

01. product description

What is Oral Dissolving Film Making Machine？

Oral Dissolving Film Making Machine produces thin films from liquid materials.

It is designed to make oral films that dissolve quickly, as well as strips for breath fresheners and other uses.

The machine has broad applications in the pharmaceutical and food industries.

What are the benefits of Oral Dissolving Film Making Machine？

The benefits that you will observe when using the Oral Dissolving Film Making Machine include:

● The machine relies on a modular design with few components, making it simple to operate and maintain.

● It is equipped with automatic working length and speed recording and automatic oven temperature control to ensure efficient and high-quality production.

● All parts in contact with the material are made of stainless steel and food-grade materials, meeting "GMP" requirements.
● PLC control panel can easily adjust all data parameters.
● The air intake and exhaust pipes have been redesigned into cylinders to facilitate cleaning and prevent cross-contamination.

 What are the main sub-modules of Oral Dissolving Film Making Machine?

The ODF Making Machine employs various modules to accomplish its task.

The primary labor modules include:

① Winding/Unwinding Station

● Place the PET roll on the Air Expansion Shaft and inflate it to secure the film;

● The traction mechanism pulls the material from the reel into each station;

● One side of the Air Expansion Shaft is connected to the Magnetic Powder Brake;

● Adjust the controller to achieve precise tension control based on the unique material and tension requirements.

② Film Making Station

● Used to adjust the horizontal balance of the coating roller,which can affect the film's thickness;

● Through a specific scraper,evenly distribute the liquid material to the base film;

● Fix the position of the two baffles,and adjust the film width of the coating.

③ Film Drying Station

● Air Inlet Bellows Greenhouse is heating by external stainless steel heater;

● The drying area using asbestos(Aluminum silicate refractory fiber)to preserve heat,and the temperature is controlled by PLC panel;

● Heating temperature arrangement at 30~100±0.5℃,with automatic proportional temperature control.

④ Traction Module

● Composed of rubber roller,pneumatic components,steel roller and drive system;

● Traction roller has a surface covered with EPDM rubber,with a hardness of Shaw 75 to 80 degrees;

● Cylinder is equipped with a swing arm pressure roller,allowing pressure adjustment.

Which Industries use Oral Dissolving Film Making Machine？

You can use Oral Dissolving Film Making Machine for a variety of industries,for example:

● Pharmaceutical industry

The industry needs the machine to make liquid materials into thin film of drugs, including quick-dissolvable oral films,transfilms.

● Food Industry

This industry uses specialized types of machines to make liquid materials into thin film,including mouth-freshening strips

● Nutraceutical Industry

It can assist different nutraceutical companies in making healthy functional food films.

Does RS offer Technical Support for Oral Dissolving Film Making Machine?

Yes,RS offers technical support for Oral Dissolving Film Making Machine.

● Correct transportation to the installation site

● Installation of the machine on site

● Inspection and testing of the machine after installation

● Machine consultation and repair in case of problems

● Training of operators in optimal oper
